A well-known property of stainless steel
is that it is very hard and seldom makes
a square corner when bent.
A very nice looking square corner can be
attained,however,by putting a "V"
groove in the stainless steel. |

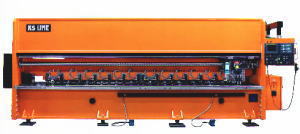

High-Technology Machine
Size/Weight SP4012
5800L * 2215W * 2135H * 18t |
 |
CHARACTERISTICS
| １． |
The stainless steel sheet is secured while
the blade is in operation. |
| ２． |
The machine is compact. |
| ３． |
NC controls provide automation. |
| ４． |
Oil pressure controls give one-touch control. |
| ５． |
Stablizing pressure is close to the groove
resulting in straight lines. |
| ６． |
Ease of operation allows just about anyone
to operate the machine. |
| ７． |
Very quiet operation. |
|
NC SPECIFICS:FANUC FS 0ｉ-MF Plus
| Entry |
Coversation style |
| Operation |
Internal automated Macro |
| Memory |
16 sheets |
| Grooves |
10 |
| Kinds of Grooves |
1.5mm 6 kinds
2.0mm 6 kinds
Special 3 kinds |
| Number of cuts |
1.5mm 5 times
2.0mm 5 times
Special 10 times |
| Groove setting |
ABS or INC |
| Mode of Operation |
Auto or semi-automated |
| Both sides |
Possible. Protective tape thickness readable |
| Corrective function |
Cutting depth |
| Progress report |
Show on Monitor |
| Multiplicity |
Same settings can be repeated Limitlessly |
| Resetting |
Possible at anytime. |
| Memory check |
Sheet shifting. |
| Blade depth |
| Program number |
|
MACHINE SPECIFICS
| TYPE |
SP 478 |
SP 678 |
SP 4012 |
SP 6012 |
| PROCESSING CAPABILITIES: |
Material |
SUS 304 |
| Length |
500-4000mm |
500-6000mm |
500-4000mm |
500-6000mm |
| Width |
30-800mm |
30-1200mm(2400mm) |
30-1200mm(2400mm) |
| Thickness |
1.5-3.0mm |
1.5-3.0mm |
1.5-3.0mm |
| MACHINE: |
Size/weight |
5800L
1975W
2135H 18t |
8440L
1975W
2350H 25t |
5800L
2215W
2135H 18t |
8440L
2215W
2350H 25t |
| PROCESSING SPEED: |
Horizontal cut |
15m/min(adjustable) |
| Horizontal return |
35m/min(max) |
| Sheet adjustment |
6m/min(max) |
| Blade depth adjustment |
１m/min(max) |
| MOTORS: |
Cutting |
αi F30/4000-B |
| Adjustment |
βi S 2/4000-B |
| Blade |
βi S 8/2000-B |
| Oil pressure |
2.2kw |
| COLOR |
request |
| NORMAL EQUIPMENT |
Manual Special slide calipers(1) |
| Blade holder(3)Blade adjustor(1) |
| Extra parts(1set)Job tools(1set) |
|
