V Groone Depth

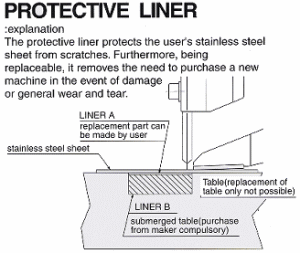

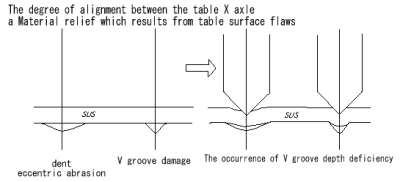

As the double protective liner is employed,
protecting the bed, the groove depth is not
adversely affected by disfigurement, dents
or damage of the V groove itself. The blade
motion and the parallelism of the table surface,
which could be called the life line of the
V grooving machine.

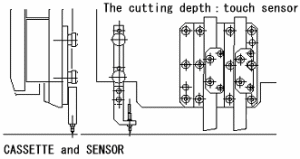

The cutting depth is corrected automatically
be the touch sensor method so changes in
temperature and other time can be ignored.
Straightness of the V Groove
As the cutting tool frame and the sheet pressing
frame are seperated, the straightness of
the cutting axle is not affected by deformation
of the frame at the time of pressing.
Compared with the machines of the other manufacturers
the structure of the rib etc are much thicker.
As a consequence, our machine is comparatively
heavy. However, warping is less likely to
occur.
(To be measured straight ４Ｍ machine is
within about0.01mm, ６Ｍ machine is within0.02mm
for the enter length.)
V Groove Results
As a precision cut, large diameter ball thread
is employed a smooth cutting motion can be
maintained over a long period of time.
The special cutting tool of Aoyagi maintains
its sharpness and has a 2-3 times life span
than that of former stainless steel cutting
tools.
(Special blade**ＫＺＴＳ−９４)
EASE OF USE
Due to its simple construction and the fact
that data can be easily created by means
of interactive programming, this machine
does not require a lot of operating skill.
|
